Quartz Heaters – Precision Infrared Heating

Quartz Sheath
The quartz tube shields the heating coil from ambient heat loss caused by external drafts. It offers the highest infrared transmission of any available material, delivering efficient and uniform heat. More durable than tungsten filament lamps or sealed quartz tubes, quartz heaters provide a long service life—often lasting several years—while producing very low visible light for reduced glare.

Heating Coil
The optimally designed coil ensures uniform heat distribution and emits a clear red glow at full rated voltage. Operating in the infrared medium wavelength range (2.30–3.00 microns), it delivers fast and efficient heat transfer. Fast-acting designs are available when rapid heating is required. Coils are designed for horizontal operation only.

Ceramic Caps
Specially engineered ventilated ceramic caps allow the heater to “breathe” during heating and cooling cycles. These caps also provide mechanical support for the heater and are available in multiple configurations to suit different termination styles.

Terminals
Standard configuration includes a 10-32 stainless steel screw terminal. Additional termination options are available, including lead wires, quick disconnects, and custom styles to meet application requirements.

High-Temperature Cement
A low-expansion, high-temperature cement bonds the quartz tube to the ceramic caps, ensuring durability and thermal stability. Cement-free designs are also available using alternate support methods.

QTP-L 9-3/4" (247mm) Length

Part Number Watts Volts
QTP-L200-240 200 240
QTP-L250-240 250 240
QTP-L400-240 400 240
QTP-L650-240 650 240
QTP-L1000-240 1000 240

QTP-S 4-15/16" (124mm) Length

Part Number Watts Volts
QTP-S200-240 200 240
QTP-S250-240 250 240
QTP-S400-240 400 240
QTP-S500-240 500 240

Quartz Heater Specifications

Dimensional Data (C, M, N, P, S & V Styles)

Specification 3/8″ 1/2″ 5/8″
Nominal Quartz O.D. 3/8″ 1/2″ 5/8″
Actual Quartz O.D. 0.394″ 0.502″ 0.630″
Ceramic Cap O.D. 0.690″ 0.875″ 0.875″
Screw Terminal Size 6-32 × 1/2″ 10-32 × 1/2″ 10-32 × 1/2″
Maximum Length 48″ 60″ 72″
Minimum Length 10½” 10½” 10½”

Resistance Tolerance: NEMA Standard +10% / −5%
Wattage Tolerance: NEMA Standard +5% / −10%

Maximum Ratings:

  • Voltage: 480V

  • Amperage: 20A

  • Watt Density: 40 W/in²

Technical Information

  • Efficient and Instantaneous Heat
  • Fast Heat Response and Cooling
  • Conservation of Energy
  • Functional Design
  • High Operating Temperatures

Features

All hot materials radiate energy. Energy is transferred in line of sight by electromagnetic waves, emitted by the source (hot surface) and absorbed by the sink, i.e. the cooler surface. The amount of radiant energy transferred depends on temperature, emissivity and the effective surface area of the source and sink.

Heaters, which utilize radiant energy to transfer heat, are commonly known as infrared radiant heaters. Radiant energy is absorbed into the surface layer of material being heated and then dispersed through the material by conduction. Before you dry, heat, bake or cure any product with any heat source check Akinsun quartz heater features.

Fast Response & Efficient Heat

Standard quartz heaters have a response time of 80% within 15 seconds and 100% within 30 seconds with almost the same cooling time. These heaters are quiet, cool and emit no significant glare. Infrared heat waves are absorbed by both light and dark color surfaces at the same speed. Special heaters can be designed for response times quicker than 15 seconds.

Clean Heat Energy

Akinsun radiant heaters are highly resistant to corrosion, since the heat source is quartz glass. Hardware is made of stainless steel and rust resistant material. An occasional wipe with a cloth keeps it clean.

Mounting Ease and Compact

The termination on our quartz heater are built such that it is easy to hang, easy to detach and hang in new ways. They are compact, so you do not need much room to move around, to make new layouts. The units are very light which makes mounting easy.

Economy and Conservation of Energy

Quartz heaters emit infrared energy, the energy that is most easily absorbed by a mass and converted to heat. The energy goes directly into your product. It does not have to heat a lot of air at first. We use clear (transparent) tubes and also can supply translucent if needed.
Akinsun heaters are up to 80% efficient. Some heat sources return as little as 30% of your input energy in the form of finished work. Because quartz heaters are so efficient you need fewer units, and less floor space to do a job. All which usually equal the cost of the heater in a year's time.

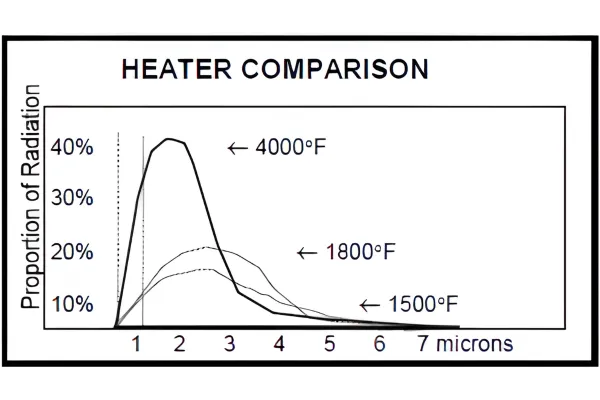

Distribution of wavelength at different source temps.

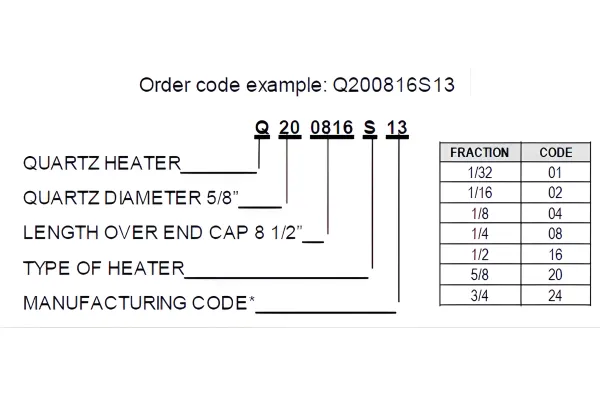

Quartz heater Ordering Information

Heating Element Comparison

CHARACTERISTIC METAL SHEATH QUARTZ TUBE T3 LAMP
Radiator Incoloy sheath Ni/Ch wire Tungsten filament
Radiator temp 1500°F 1800°F 4000°F
Radiation efficiency 56% 62% 86%
Wavelength band 1.5-7.5um 1.5-6um 0.5-3um
Visible light Minimal Minimal Considerable
Glare None None Substantial
Thermal shock Excellent Excellent Excellent
Physical shock Excellent Fair Poor
Watt/foot 450-750 600 1200
Voltage 120-600 120-600 120-600
Elements dia. 0.315" 0.315" to 0.750" 0.375"
0.430"
0.496"
Response Slow Medium to Fast Fast

Application

  • Shrink Packaging
  • Screen Printing
  • Laminating
  • Coating
  • Preheating
  • Drying
  • Sealing
  • Thawing
  • Food Warming
  • Plastic Forming
  • Vulcanizing / Curing Rubber
  • Sterilization
  • Thermoforming
  • Electrostatic Copy Equipment
  • X-Ray Equipment
  • Space Heaters
  • Drying Textiles
  • Drying Lacquers And Paint

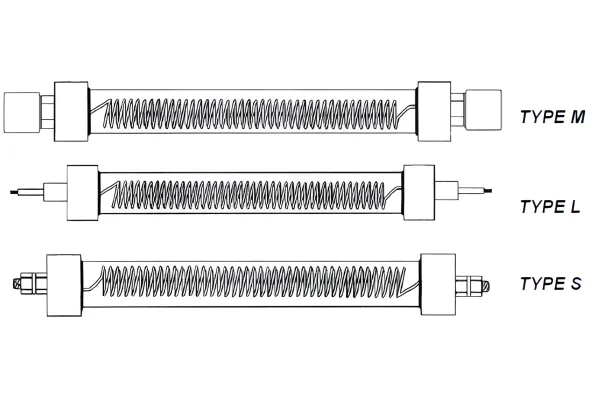

Terminations and Style

Standard Sizes and Ratings

DIAMETER INCHES SHEATH LENGTH VOLTS WATTS CATALOG NUMBER
3/8 14 120 480 Q121400L02
3/8 14 240 480 Q121400L03
3/8 20 120 720 Q122000M02
3/8 20 240 720 Q122000M03
3/8 38 120 1450 Q123800L01
3/8 38 240 1450 Q123800L02
3/8 48 120 1900 Q124800S02
3/8 48 240 1900 Q124800S03
1/2 18 120 900 Q161800L05
1/2 18 120 900 Q161800S05
1/2 18 240 900 Q161800S02
1/2 26 120 1200 Q162600S05
1/2 26 240 1200 Q162600S06
1/2 36 120 1800 Q163600S03
1/2 36 240 1800 Q163600S04
1/2 50 120 2400 Q165000S04
1/2 50 240 2400 Q165000S05
1/2 66 120 1540 Q166600M03
1/2 66 240 1540 Q166600M04
1/2 72 120 2780 Q167200S02
1/2 72 240 2780 Q167200S03
5/8 24 120 1075 Q202400S05
5/8 24 240 1075 Q202400S06
5/8 30 120 1375 Q203000S02
5/8 30 240 1375 Q203000S03
5/8 34 120 2500 Q203400M03
5/8 34 240 2500 Q203400M01
5/8 50 120 3400 Q205000S05
5/8 50 240 3400 Q205000S06
5/8 60 120 2875 Q206000S05
5/8 60 240 2875 Q206000S02
5/8 72 120 2000 Q207200M04
5/8 72 240 2000 Q207200M03
5/8 74 120 5650 Q207400M11
5/8 74 240 5650 Q207400M03

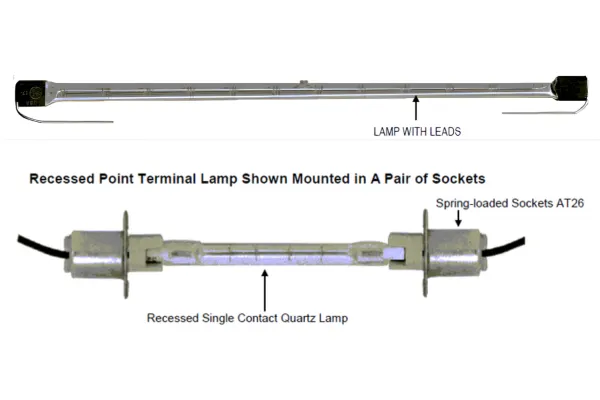

General Electric: T3 Lamps

PART NO. PRODUCT CODE WATTS VOLTS MAX. OVERALL LENGTH LIGHTED LENGTH BURN POSITION TERMINATION
QH375T3/CL/T 33883 375 115-125 8-11/16 5-1/16 UNIVERSAL RECESSED POINT
QH500T3/CL/T 21787 500 115-125 8-7/8 4-7/8 UNIVERSAL RECESSED POINT
QH1600T3/CL/T 22693 1600 200-220 19-5/8 15-3/4 HORIZONTAL RECESSED POINT
QH1600T3ICL/T 22691 1600 230-250 19-5/8 15-3/4 HORIZONTAL RECESSED POINT
QH2500T3/CL/T 22837 2500 460-500 28-5/8 24-7/8 HORIZONTAL RECESSED POINT
QH300T3/CL 39019 300 120 8 15/32 4-3/16 UNIVERSAL LEADS
QH375T3/CL 21337 375 115-125 8-12/16 5-1/16 UNIVERSAL LEADS
QH500T3/CL 21788 500 115-125 8-12/16 4-13/16 UNIVERSAL LEADS
QH1000T3CL 22355 1000 200-220 13-3/16 10 HORIZONTAL LEADS
QH1000T3CL 22357 1000 230-250 13-13/16 10 HORIZONTAL LEADS
QH1000T3CL/1 22358 1000 230-250 11-7/8 10 HORIZONTAL LEADS
QH1200T3/CL 22531 1200 144 8-13/16 6-1/8 HORIZONTAL LEADS
QH1001T3/CL/HT 22365 1000 230-250 13-13/16 10 HORIZONTAL LEADS
QH1200T3ICL/HT 22532 1200 144 8-13/16 6-3/16 HORIZONTAL LEADS
QH2M73T1/CL/HT 22768 2000 230-250 11-15/16 9-11/16 HORIZONTAL LEADS
QH2M73T1/CL/HT/VB 15551 2000 230-250 11-15/16 9-11/16 UNIVERSAL LEADS
QH1600T3/CL 22686 1600 200-220 19-13/16 15-7/8 HORIZONTAL LEADS
QH1600T3/CL 22695 1600 277 19-13/16 15-7/8 HORIZONTAL LEADS
QH1600T3/CL 22688 1600 230-250 19-13/16 15-7/8 HORIZONTAL LEADS
QH3800T3/CL/VB 22678 3800 550-600 41-13/16 38 UNIVERSAL LEADS
QH2500T3/CL 22838 2500 460-500 28-13/16 24-7/8 HORIZONTAL LEADS
QH3650T3/CL/5 10872 3650 480 41-5/8 38 HORIZONTAL LEADS
QH3800T3/CL 22875 3800 550-600 41-13/16 38 HORIZONTAL LEADS
QH2MT3/CL/HT 22790 2000 230-250 13-13/16 10 HORIZONTAL LEADS
QH5MT3/VCL/HT 22900 5000 575-625 28-13/16 25-5/16 HORIZONTAL LEADS
*QH2MT3/CL/HT/R 12716 2000 230-250 13-15/16 11-1/16 HORIZONTAL LEADS

*Comes with built-in reflector.
